Handling – Crane hook

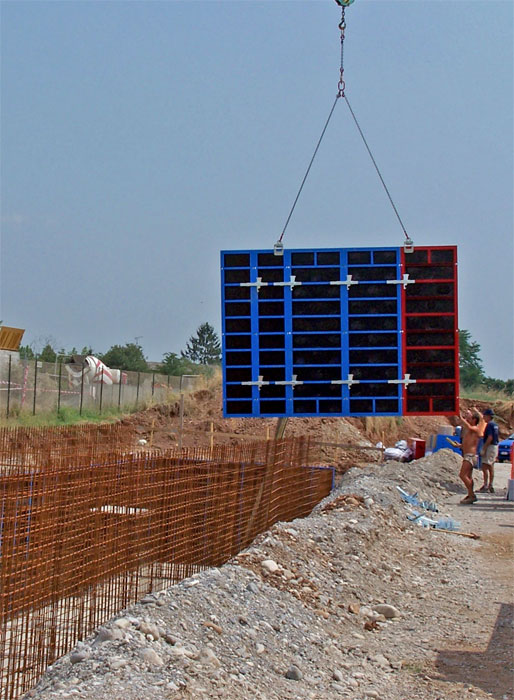

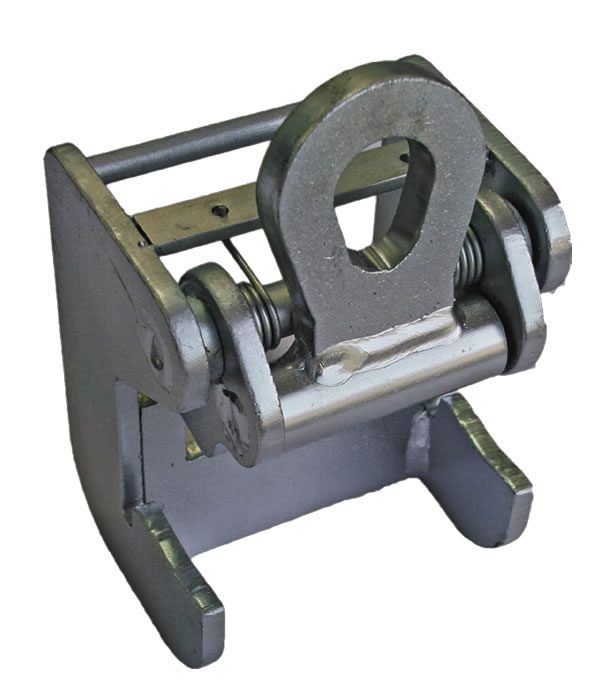

The crane hook, Certified CE-Mat. 7417/04, usable only with system GP-10, is used for the movement of the formworks, it has a maximum capacity of 1140kg per hook.

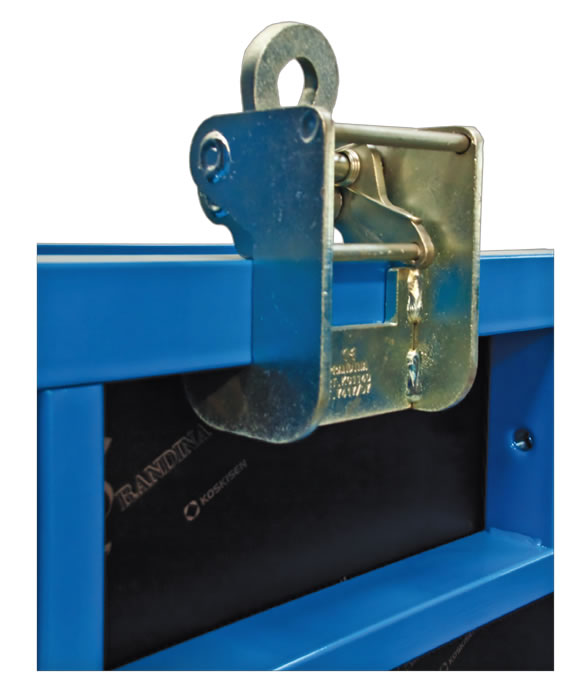

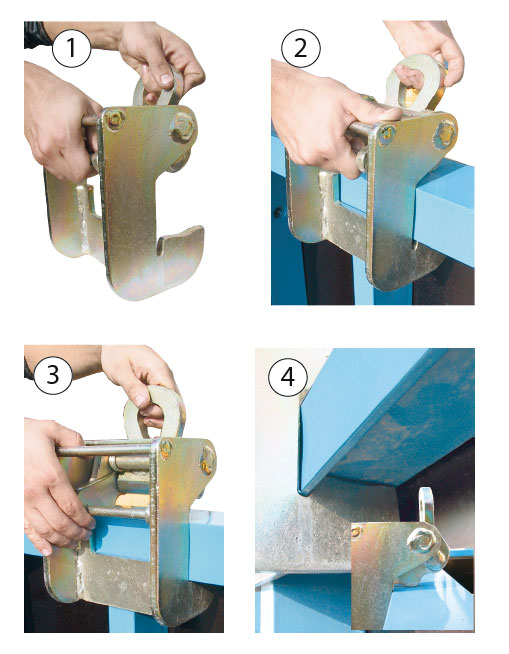

The crane hooks, always used in pairs must be imperatively positioned to horseride a reinforced crosspiece that will be automatically blocked with springs. To unblock make lever on the posterior bar of the motivating force in order to free the hook.
